深圳市南方硅谷半导体股份有限公司

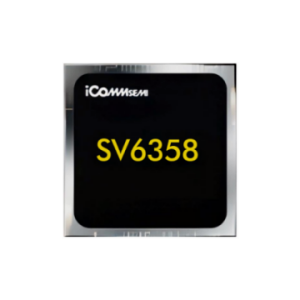

SV63xx

The SV63xx is a fully integrated SoC with 2.4GHz band 1T1R 11b/g/n/ax Wi-Fi,Bluetooth Low Energy 5.0, and MCU.
CPU core speed up to 320MHz
Internal SRAM up to 324KB
support Wi-Fi Alliance WPA3
Support 24/26/40 MHz crystal oscillator
Internal 32.768 KHz RC clock with calibration
Single power supply,type 3.3V

芯片	接口	WIFI	频段	Bluetooth	RF端口	封装	SDK
SV6358	SDIO/USB	802.11b/g/n/ax	2.4G(H20/H40)	BLE5.0	1T1R	QFN32(4X4mm)	213

SV6158

The SV6158 series is a fully integrated SoC with 2.4GHz band 1T1R 11b/g/n Wi-Fi, Bluetooth Low Energy 5.0, and MCU.
Low power Tx/Rx for short range scenario,low power beacon listen mode,low power dormant mode
Support MiFi low power,Ad-hoc, peer-to-peer and Wi-Fi Direct modes supported
Supports calibration algorithm to handle non-ideal effects from CMOS RF block
Single power supply, range from 3.3 ~ 5V
STBC in RX mode
A-MPDU Tx & Rx
Support immediate Block-Ack
WFA features: WEP/TKIP/WPA/WPA2/WPA3, WMM/WMM PS
AP/STA mode
Internal 32.768 KHz RC clock with calibration

芯片	接口	WIFI	频段	Bluetooth	RF端口	封装	SDK
SV6158	SDIO	802.11 b/g/n	2.4G(H20/H40)	无	1T1R	QFN32(4x4mm)	无
SV6158M	SDIO/UART	802.11 b/g/n	2.4G(H20/H40)	BLE5.0	1T1R	QFN32(4x4mm)	无

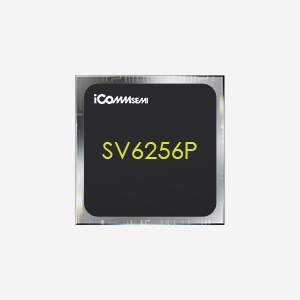

SV6256P

Single-Chip Dual Band 802.11 a/b/g/n MAC/BB/Radio with USB/SDIO Interface
Supports calibration algorithm to handle no-idealities effects from CMOS RF block
WFA features: WEP/TKIP/WPA/WPA2; WMM/WMM PS
STBC in RX mode
A-MPDU Tx & Rx
Support immediate Block-Ack
AP/STA mode: Soft-AP
Single power supply,type 3.3V

芯片	接口	WIFI	频段	RF端口	封装	开发板	SDK
SV6256P	USB/SDIO	802.11 a/b/g/n	2.4G/5G (H20/H40)	1T1R	QFN48(6x6mm)	无	无

SV6155P

Single-Chip 802.11 b/g/n MAC/BB/Radio with USB Interface
Supports calibration algorithm to handle no-idealities effects from CMOS RF block
WFA features: WEP/TKIP/WPA/WPA2; WMM/WMM PS
STBC in RX mode
A-MPDU Tx & Rx
Support immediate Block-Ack
AP/STA mode: Soft-AP
Single power supply,type 3.3V

芯片	接口	WIFI	频段	RF端口	封装	开发板	SDK
SV6155P	USB	802.11 b/g/n	2.4G (H20/H40)	1T1R	QFN48(6x6mm)	无	无
